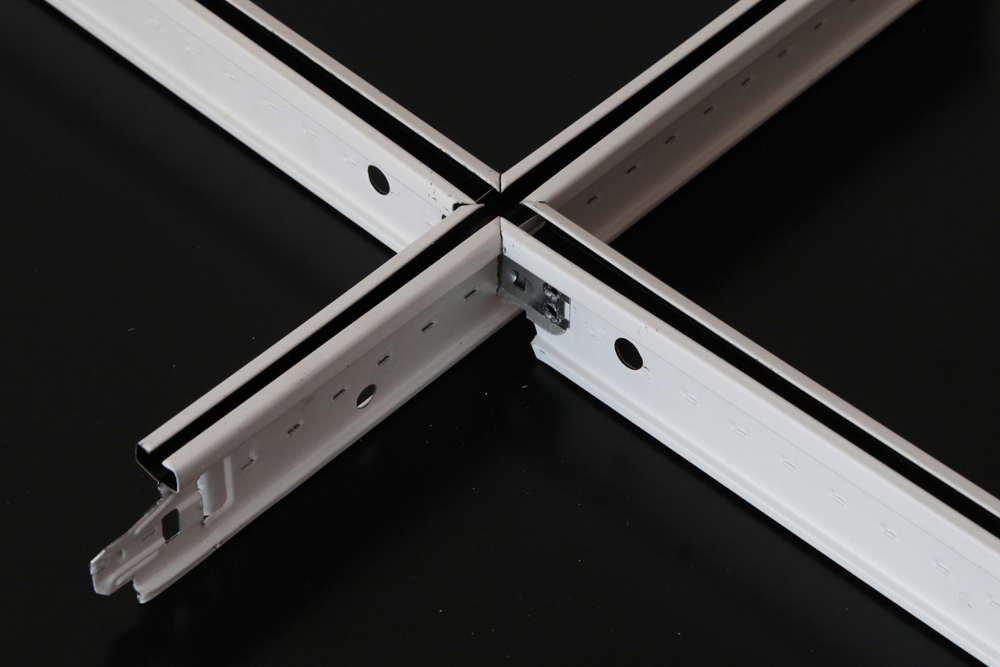

15Wx38H Groove T-grid

15mm width 38H Groove T-grid with thickness from 0.3-0.4mm and different color for choice

INQUIRY

DETAIL

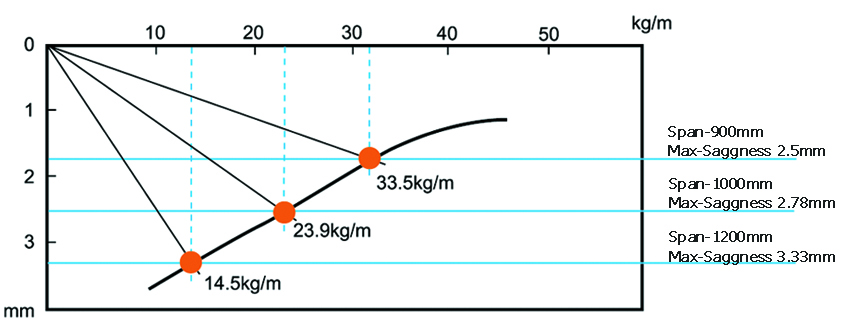

FEATURES				LOADING CAPACITY
Type
15mm Width 38mm Height Groove T-grid
Color
White (can be customized)
Raw Materials
Bake finish steel
Stitch Line
Can be customized
Standard
China National Standard GB/T11981-2008

INSTALLATION QTY CHART
Module		Installation Method		Approximate Quantity PCS required per 100m2 (waste allowance not included)
Tile Size	Tile Qty	Main T Centres	Hanger Centres	Main T	1.2 Cross T	0.6 Cross T	Hanger	Wall angle
1200x600	139pcs	1200mm	1200mm	23	139		70	14
		600mm	1200mm	48		139	140
600x600	278pcs	1200mm	1200mm	23	139	139	70
		600mm	1200mm	48		278	140

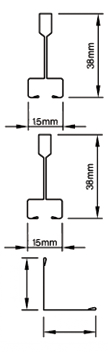

DIMENSION
Item		code no.	Dimension（mm)			Thickness	Qty./box	Weight/box
			length	width	height	mm	pcs	kgs
	Main T	A538	3600/3660	15	38	0.35	25	24.5-26.5
						0.3
						0.27
	Cross T		1200/1220	15	38	0.35	50	15.5-16.5
						0.3
						0.27
	Cross T		600/610	15	38	0.35	75	11.5-12.5
						0.3
						0.27
	Wall angle	L	3000/3050	24	24	0.5	40	20-21
				22	22	0.45
		W		15x15x10		0.4
